Underfloor Heating Systems
Maincor Germany. Underfloor Heating Engineered as One System.
Complete German underfloor heating: pipework, manifolds, insulation and controls, designed to perform as a single system for 50 years.
Why Maincor
Underfloor heating is only as reliable as its weakest component. The pipe may last 50 years, but if the manifold, the mixing unit, the insulation or the controls are under-specified, the whole system underperforms, and the people who specified it wear the consequences.
Maincor is a German manufacturer of complete underfloor heating systems. Every component is designed to work as part of a single engineered system: PE-RT and PE-Xa pipework, brass and stainless manifolds, thermostatic controls, edge insulation and clip rails. That is the opposite of the mixed-brand approach common in the market, where incompatible components are pieced together and the installer carries the risk.
Key Benefits
- Complete-system engineering: every component designed and tested to work with every other component
- 50-year design life: on Maincor's core pipework range
- Even, comfortable heat distribution: lower flow temperatures, lower running costs, higher occupant comfort
- Compatible with boilers, heat pumps and solar thermal: full flexibility with the rest of our range
- Full technical support from design through commissioning: loop layouts, manifold sizing, flow balancing
Who This Is For
- Architects designing residential and light-commercial projects where comfort is a selling point
- Mechanical engineers sizing low-temperature heating systems
- Developers building to a long-term ownership or warranty standard
- Contractors who need a system that will not come back as a callback
A well-designed underfloor heating system is one of the clearest demonstrations of engineering discipline you will find in residential construction. The pipework is buried. The manifold is hidden. The only thing the end user experiences is even, quiet, efficient warmth, year after year, with no moving parts failing and no maintenance call-outs.
That outcome does not happen by accident. It happens because each loop was sized against the actual heat loss of the room, each manifold was balanced against the others, and each component came from a manufacturer that stands behind the full system.
We supply the complete Maincor range: oxygen-barrier pipework in the sizes you need, pre-assembled manifolds with flow meters and actuators, thermostatic controls (wired and wireless), edge insulation, and clip-rail systems for fast installation on screed or dry constructions.
We pair every system supply with a free design review covering loop layouts, pipe spacing, flow rates and manifold placement, so that what gets installed on site matches what the consultant signed off.
Download Technical Documentation
Maincor publishes comprehensive technical documentation for every product family. The documents below cover system design, installation, pipe specifications and certification: everything needed to specify and submit a Maincor underfloor heating system with confidence.
Technical Manuals & Installation Guides
- MAINFLOOR Underfloor Heating Technical Manual (English, December 2022) The primary design and installation reference for PE-RT and PE-Xa underfloor heating pipes. Covers oxygen barrier specification (DIN 4726), ISO 10508 application classes, maximum operating temperatures and pressures, tacker / rail / panel / hook-and-loop installation methods, thermal insulation requirements per DIN EN 1264 Part 4, impact sound reduction, EU energy directive compliance, and all floor construction types.
- MAINPRESS Technical Manual (English, July 2021) Complete technical reference for MPR multilayer composite pipes and PPSU press fittings: sizes 16–63mm, couplers, tees and elbows, installation procedures, pressure testing, flow resistance per DIN 1988-300, bending radii, ISO 10508 application class table, operating pressures by class, and DVGW certification references.
- UFH Water Temperature Controls Technical Manual Manifolds (2–12 loops), digital and dial thermostats, 24V and 230V thermal actuators, mixing valves, blending controls, zone wiring schematics, RF wireless controls, and control panel specifications (max 10 bar, operating temp range).
Technical Data Sheets
- MPR / MSR Composite Pipe Data Sheet (English, February 2022) MPR composite pipe (PE-RT / Alu / PE-RT) dimensions, pressure ratings, ISO 10508 classification table, pipe structure description, aluminium layer specification.
- PPSU Composite Fittings Chemical Resistance List Chemical compatibility data for PPSU press fittings, listing all tested substances with resistance ratings. Relevant for projects with non-standard water chemistry.
Product Catalogues
- Maincor Product Catalogue 2025 (English) The current complete range: MPR composite pipes, PE-RT and PE-Xa pipes, PPSU press fittings, MAINFLOOR underfloor heating loop systems, control panels, digital controllers, actuators, manifolds and accessories, including warranty terms.
- Maincor Product Catalogue 2023 (English) Previous edition, kept for reference. Includes the MAINPEX sliding sleeve system (DW-8501BS0475) and MAINPRESS system (DW-8501BU0326) certification references.
Certifications & Approvals
Confirmed certifications for the Maincor range supplied by Germania Solutions:
- DVGW certification: MPR composite pipes and PPSU press fittings, incl. Worksheet W 534 fitting coatings
- ÖVGW (Austrian water and gas authority): MPR pipes and fittings
- DIN 4726 oxygen tightness: all Maincor underfloor heating pipes
- ISO 10508 application classes 1, 2, 4 and 5: MPR and PE-Xa pipes
- DIN EN 1264 (water-based underfloor heating): system design basis
- CE marking: range components including insulation and controls
- DVGW System Approval DW-8501BS0475: MAINPEX sliding sleeve system
- DVGW System Approval DW-8501BU0326: MAINPRESS pressing system

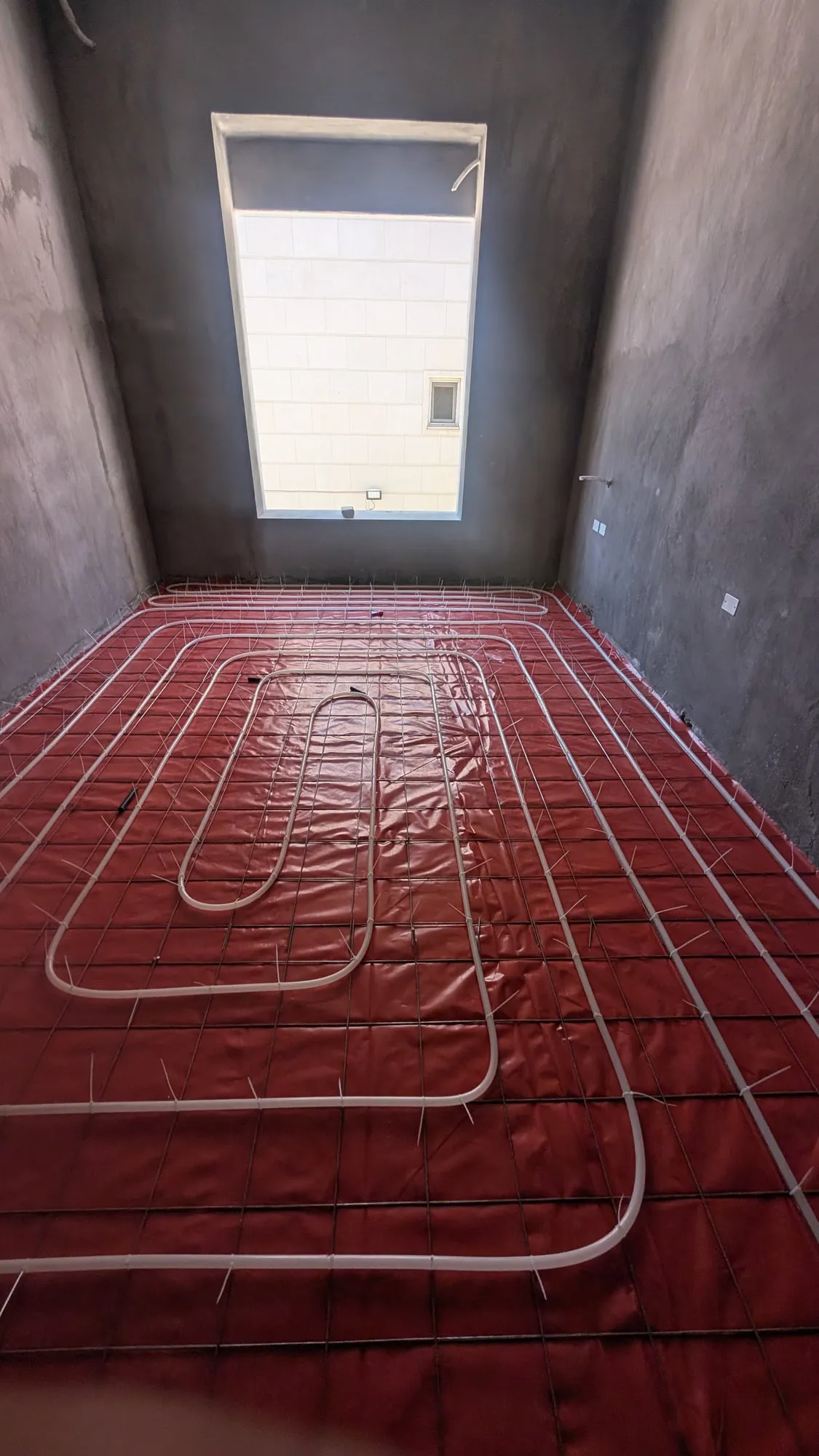

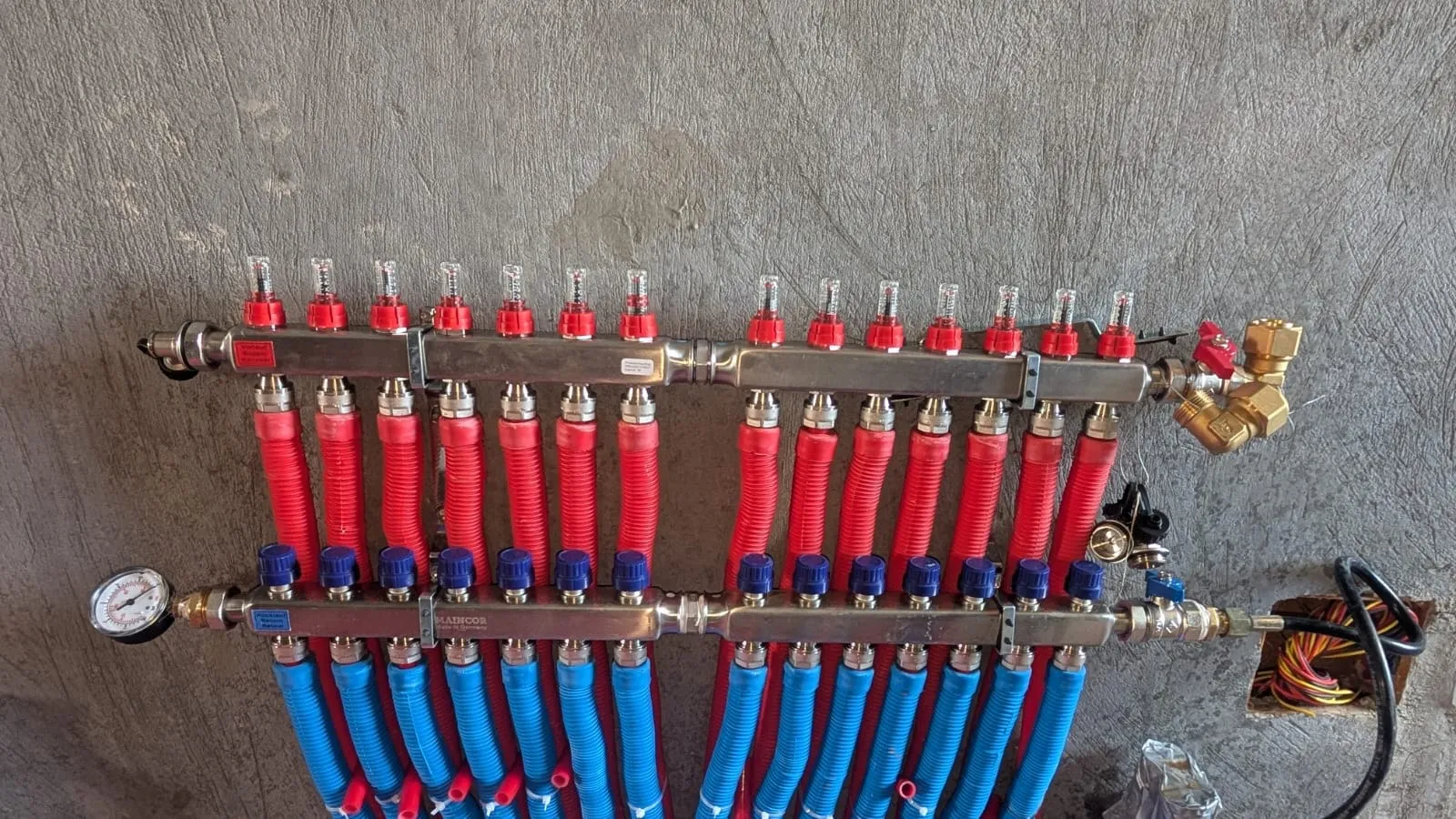

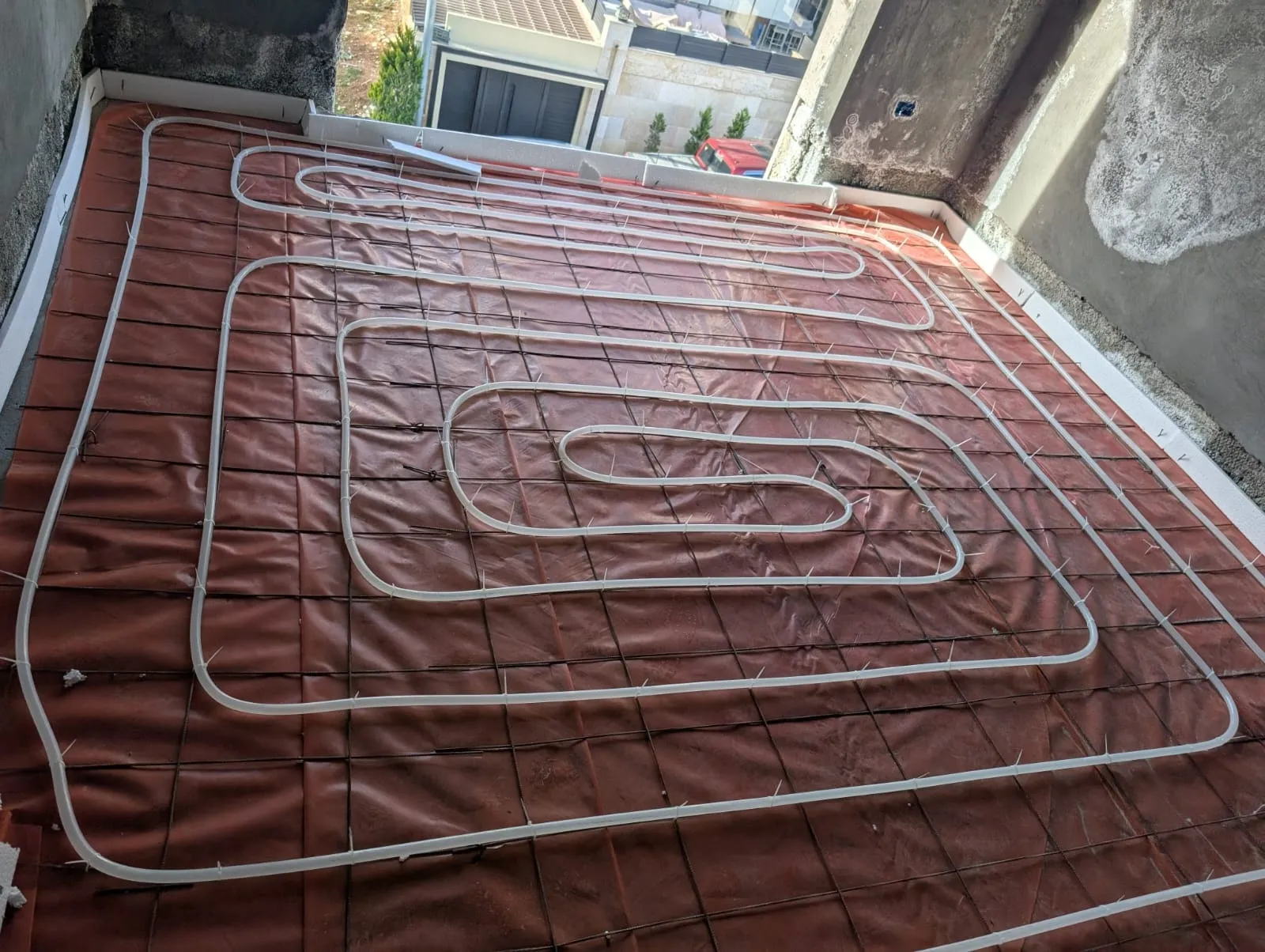

Maincor Underfloor Heating in Completed Projects
